UV Radiation Tefzel Wire ETFE Wire For Control Systems
What is ETFE hook up wire?

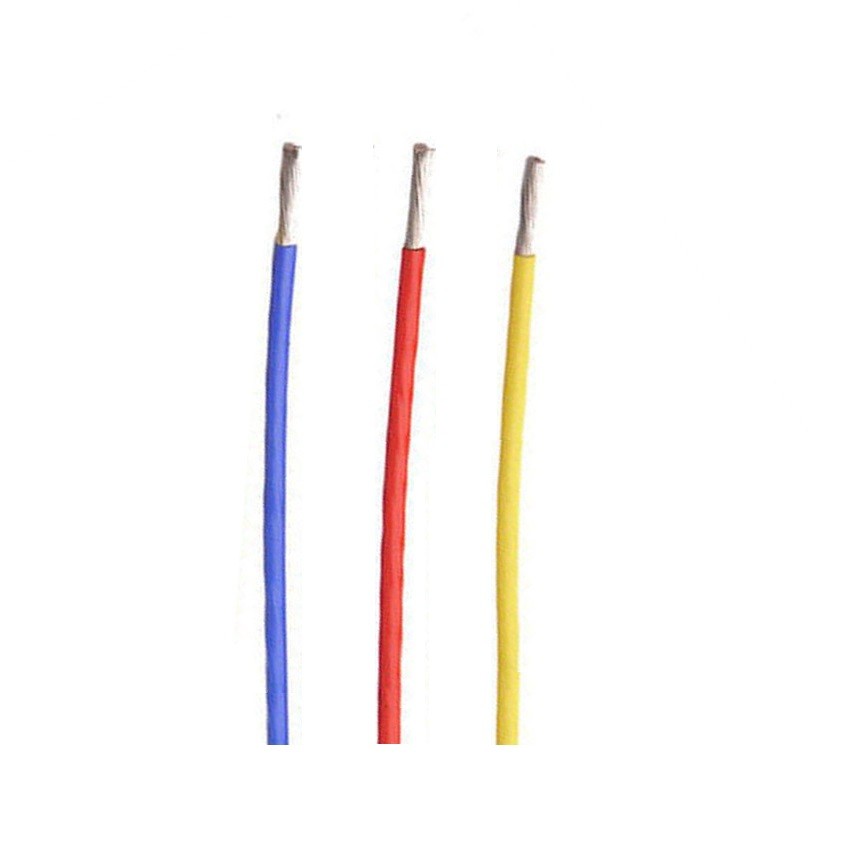

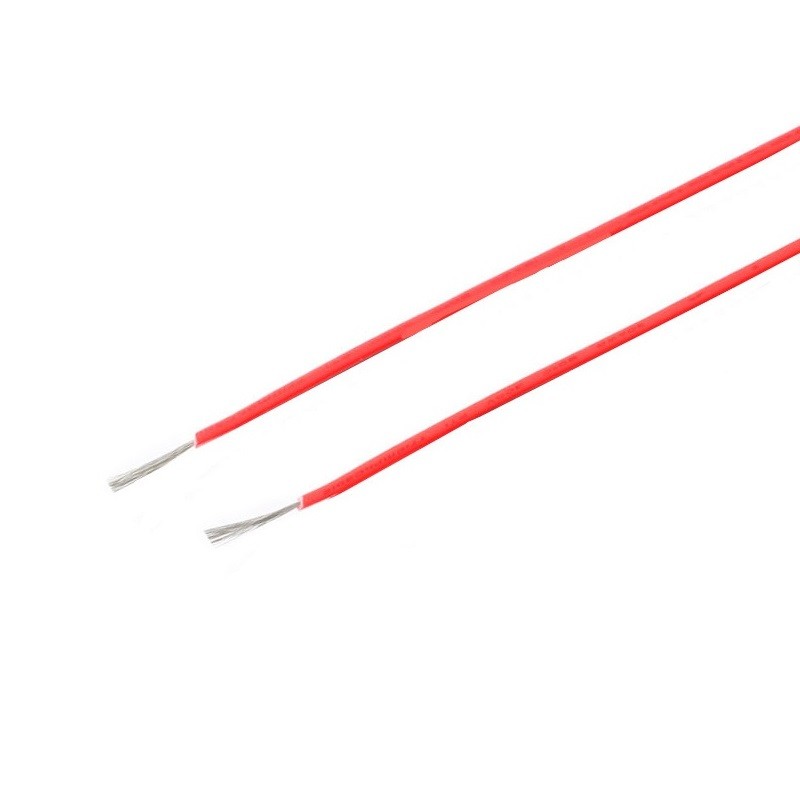

Tefzel wire, also known as ETFE wire, is a type of wire that is made using ethylene tetrafluoroethylene (ETFE) insulation material.
Tefzel wire is known for its excellent resistance to chemicals, high temperatures, and UV radiation. It has a wide range of applications in various industries, including aerospace, automotive, electronics, and telecommunications.
Some advantages of Tefzel wire include its lightweight nature, flexibility, and flame-retardant properties. It is commonly used in applications such as electrical equipment, motors, sensors, and control systems.
Properties
1. Insulation: ETFE insulation
2. Conductor: Tinned copper wire(Solid or Stranded)
3. Operating temperature :-65℃~+150℃
4. Rated voltage :AC600V or below
5. Insulation resistance(20 ℃) : not less than 100 m Ω. Km
6. Voltage test (AC) : insulation wire 2200V/1min, shielding wire 1500V/30s no breakdown
7. Color: red, yellow, blue, white, black, transparent, brown, green, yellow and green
| Wire gauge | Section area (mm2) |
Conductor construction piece/diameter (mm) |
Reference OD (mm) |
Max. Conductor resistance at 20℃ (Ω/Km) |
Reference weight kg/km |
||
| FF40-1 | FF40P11-1 | FF40-1 | FF40P11-1 | ||||
| 26awg | 0.14mm2 | 19/0.1 | 1.02 | 1.52 | 136 | 2.66 | 6.64 |
| 24awg | 0.2mm2 | 19/0.12 | 1.14 | 1.64 | 90.4 | 3.82 | 8.17 |
| 22awg | 0.4/0.3mm2 | 19/0.16 | 1.32 | 1.85 | 53.1 | 5.48 | 10.4 |
| 20awg | 0.6/0.5mm2 | 19/0.2 | 1.52 | 2.02 | 32.4 | 7.98 | 13.5 |
| - | 0.75mm2 | 19/0.23 | 1.7 | 2.2 | 24.6 | 9.99 | 16.1 |
| 18awg | 1mm2 | 19/0.26 | 1.8 | 2.3 | 20.4 | 11.7 | 18.1 |
| 16awg | 1.2mm2 | 19/0.28 | 2.01 | 2.51 | 16.6 | 14.8 | 21.8 |
| - | 1.5mm2 | 19/0.32 | 2.25 | 2.75 | 12.7 | 18.2 | 25.9 |
| 14awg | 2mm2 | 19/0.36 | 2.36 | 2.86 | 10 | 22.2 | 30.3 |
| - | 2.5mm2 | 37/0.37 | 2.78 | 3.31 | 7.43 | 30.4 | 39.9 |
| 12awg | 3mm2 | 37/0.32 | 2.9 | 3.43 | 6.63 | 33.6 | 43.4 |
| - | 4mm2 | 37/0.37 | 3.38 | 3.91 | 4.88 | 45.4 | 56.7 |
| 10awg | 5mm2 | 37/0.4 | 3.53 | 4.06 | 4.13 | 52.2 | 64 |
In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen in India...
Shenzhou Special cable have more than 80 skilled technicians and employees with professional experience
We mainly engaged in production of high temperature wire(PTFE wire,PFA wire,FEP wire,ETFE tefzel wire),Robot cable, Crane cable, Drag chain cable(TPU cable,TPE cable) etc.

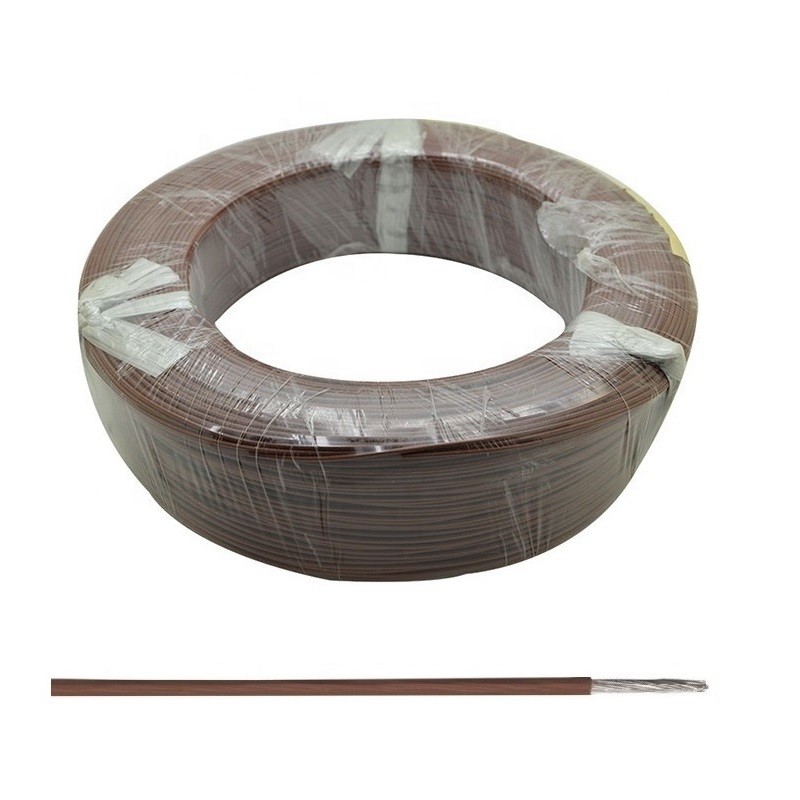

Packaging and Shipping for FEP Insulated Wire:
FEP Insulated Wire will be packaged in boxes or rolls and shipped by air, sea or ground transportation.
