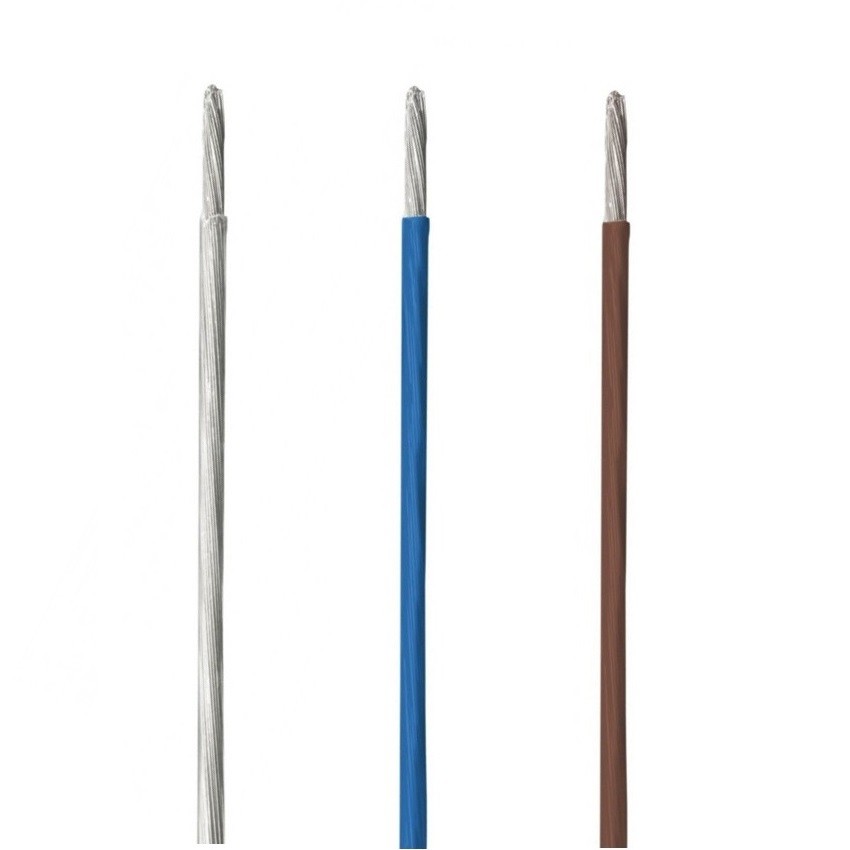

High-Temperature Resistance ETFE Insulated Electrical Wire
What is ETFE electric wire?
ETFE insulated wire, as mentioned earlier, is an electrical wire that has its insulation made from the polymer ETFE (Ethylene Tetrafluoroethylene). This type of wire is known for its excellent chemical resistance, high-temperature tolerance, and electrical properties.
ETFE insulated wire is commonly used in various applications, including but not limited to:
Aerospace and aviation: ETFE wire is used in aircraft and spacecraft due to its high-temperature resistance, lightweight nature, and resistance to fuels, lubricants, and other chemicals found in the aerospace industry.
Automotive: ETFE wire is used in automotive applications due to its ability to withstand high temperatures, resistance to oils and fuels, and its ability to resist abrasion and vibration.
Electronics: ETFE insulated wire is used in electronic applications where high-temperature resistance, chemical resistance, and excellent electrical properties are required.
Renewable energy: ETFE wire is used in solar panel systems and other renewable energy installations due to its resistance to UV radiation and its ability to withstand harsh outdoor conditions.
One of the key advantages of ETFE insulated wire is its exceptional thermal and electrical properties. It has a wide operating temperature range, typically from -65°C to 150°C, and has low dielectric constant and high dielectric strength.
This makes it suitable for demanding applications where high temperatures and excellent electrical performance are required.
Properties
1. Insulation: ETFE insulation
2. Conductor: Tinned copper wire(Solid or Stranded)
3. Operating temperature :-65℃~+150℃
4. Rated voltage :AC600V or below
5. Insulation resistance(20 ℃) : not less than 100 m Ω. Km
6. Voltage test (AC) : insulation wire 2200V/1min, shielding wire 1500V/30s no breakdown

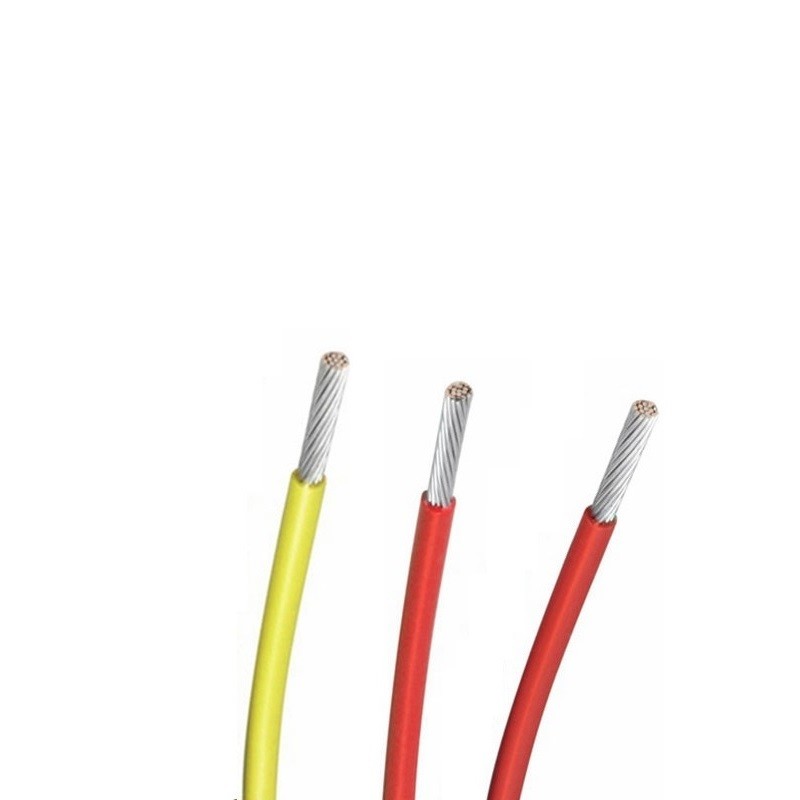

7. Color: red, yellow, blue, white, black, transparent, brown, green, yellow and green
| Wire gauge | Section area (mm2) |
Conductor construction piece/diameter (mm) |
Reference OD (mm) |
Max. Conductor resistance at 20℃ |
Reference weight kg/km |
||
| FF40-1 | FF40P11-1 | FF40-1 | FF40P11-1 | ||||
| 26awg | 0.14mm2 | 19/0.1 | 1.02 | 1.52 | 136 | 2.66 | 6.64 |
| 24awg | 0.2mm2 | 19/0.12 | 1.14 | 1.64 | 90.4 | 3.82 | 8.17 |
| 22awg | 0.4/0.3mm2 | 19/0.16 | 1.32 | 1.85 | 53.1 | 5.48 | 10.4 |
| 20awg | 0.6/0.5mm2 | 19/0.2 | 1.52 | 2.02 | 32.4 | 7.98 | 13.5 |
| - | 0.75mm2 | 19/0.23 | 1.7 | 2.2 | 24.6 | 9.99 | 16.1 |
| 18awg | 1mm2 | 19/0.26 | 1.8 | 2.3 | 20.4 | 11.7 | 18.1 |
| 16awg | 1.2mm2 | 19/0.28 | 2.01 | 2.51 | 16.6 | 14.8 | 21.8 |
| - | 1.5mm2 | 19/0.32 | 2.25 | 2.75 | 12.7 | 18.2 | 25.9 |
| 14awg | 2mm2 | 19/0.36 | 2.36 | 2.86 | 10 | 22.2 | 30.3 |
| - | 2.5mm2 | 37/0.37 | 2.78 | 3.31 | 7.43 | 30.4 | 39.9 |
| 12awg | 3mm2 | 37/0.32 | 2.9 | 3.43 | 6.63 | 33.6 | 43.4 |
| - | 4mm2 | 37/0.37 | 3.38 | 3.91 | 4.88 | 45.4 | 56.7 |
| 10awg | 5mm2 | 37/0.4 | 3.53 | 4.06 | 4.13 | 52.2 | 64 |
In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen in India...
Shenzhou Special cable have more than 80 skilled technicians and employees with professional experience
We mainly engaged in production of high temperature wire(PTFE wire,PFA wire,FEP wire,ETFE tefzel wire),Robot cable, Crane cable, Drag chain cable(TPU cable,TPE cable) etc.

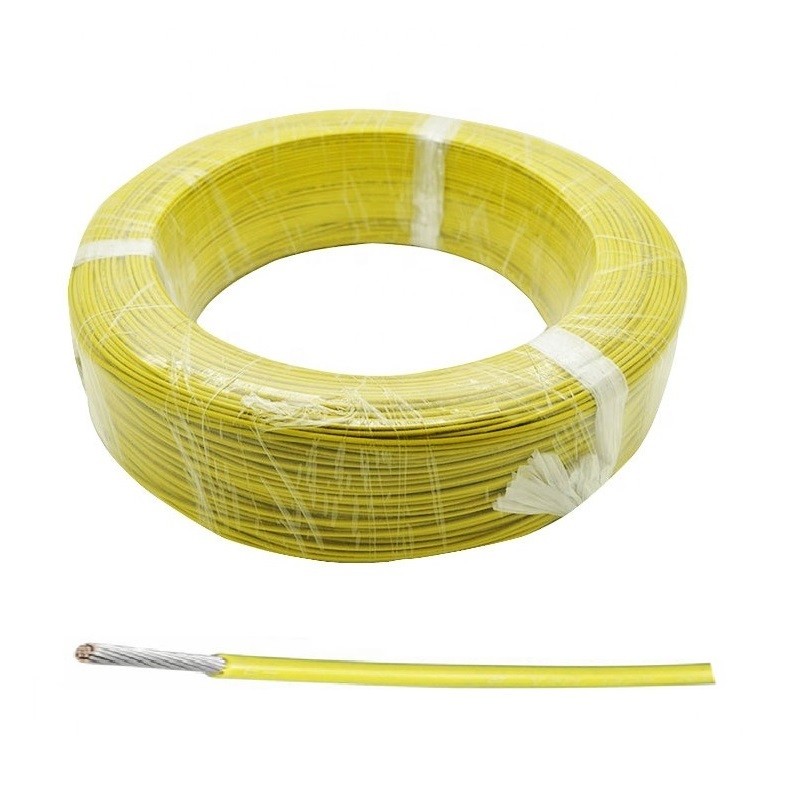

Packaging and Shipping for FEP Insulated Wire:
FEP Insulated Wire will be packaged in boxes or rolls and shipped by air, sea or ground transportation.
