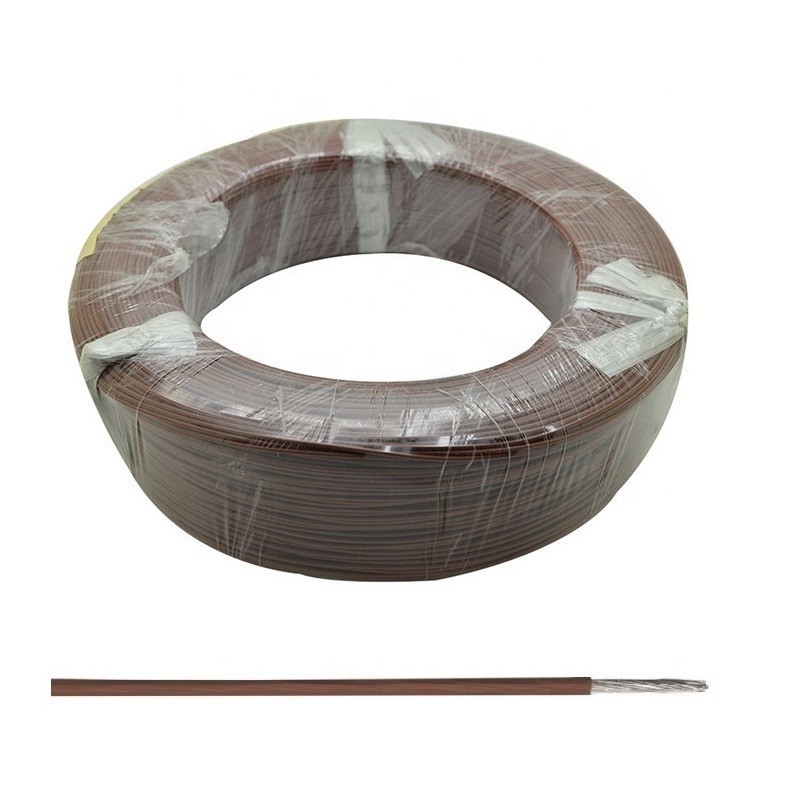

Tin Plated ETFE Insulation Wire With Excellent Electrical Properties
What is ETFE insulation wire?
ETFE insulation wire is a type of electrical wire that has its insulation made from ETFE (Ethylene Tetrafluoroethylene). ETFE is a durable and high-performance polymer known for its excellent thermal and electrical properties.
ETFE insulation offers several advantages for electrical wiring applications, including:
High-temperature resistance: ETFE insulation can withstand elevated temperatures, making it suitable for applications that involve heat, such as in industrial or automotive settings.
Chemical resistance: ETFE is highly resistant to chemicals, including acids, oils, and solvents. This makes it useful in environments where wires may come into contact with corrosive substances.
Excellent electrical properties: ETFE insulation provides good dielectric strength and low surface friction, which helps to minimize signal loss and interference in electrical circuits.
Mechanical strength: ETFE insulation offers excellent mechanical properties, including resistance to abrasion and toughness, making it durable and resistant to wear and tear.
ETFE insulation wire finds applications in various industries, including aerospace, automotive, renewable energy, electronics, and more. It is commonly used for high-temperature wiring, motor windings, lighting systems, electrical panels, and other electrical applications.
Properties
1. Insulation: ETFE insulation
2. Conductor: Tinned copper wire(Solid or Stranded)
3. Operating temperature :-65℃~+150℃
4. Rated voltage :AC600V or below
5. Insulation resistance(20 ℃) : not less than 100 m Ω. Km
6. Voltage test (AC) : insulation wire 2200V/1min, shielding wire 1500V/30s no breakdown

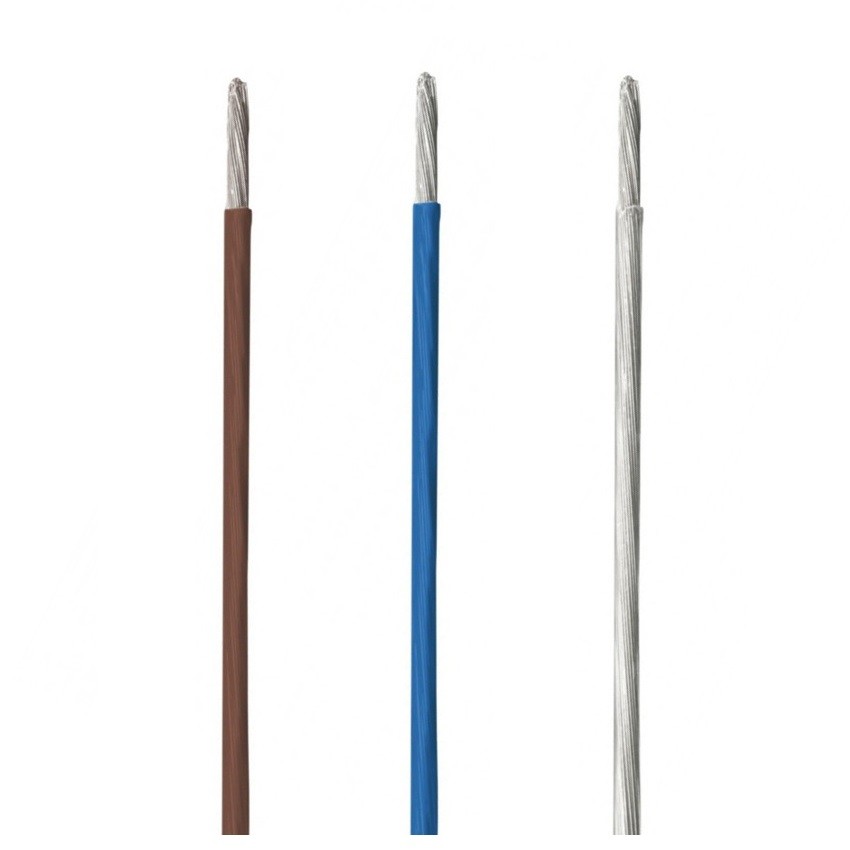

7. Color: red, yellow, blue, white, black, transparent, brown, green, yellow and green
| Wire gauge | Section area (mm2) |
Conductor construction piece/diameter (mm) |
Reference OD (mm) |
Max. Conductor resistance at 20℃ |
Reference weight kg/km |
||
| FF40-1 | FF40P11-1 | FF40-1 | FF40P11-1 | ||||
| 26awg | 0.14mm2 | 19/0.1 | 1.02 | 1.52 | 136 | 2.66 | 6.64 |
| 24awg | 0.2mm2 | 19/0.12 | 1.14 | 1.64 | 90.4 | 3.82 | 8.17 |
| 22awg | 0.4/0.3mm2 | 19/0.16 | 1.32 | 1.85 | 53.1 | 5.48 | 10.4 |
| 20awg | 0.6/0.5mm2 | 19/0.2 | 1.52 | 2.02 | 32.4 | 7.98 | 13.5 |
| - | 0.75mm2 | 19/0.23 | 1.7 | 2.2 | 24.6 | 9.99 | 16.1 |
| 18awg | 1mm2 | 19/0.26 | 1.8 | 2.3 | 20.4 | 11.7 | 18.1 |
| 16awg | 1.2mm2 | 19/0.28 | 2.01 | 2.51 | 16.6 | 14.8 | 21.8 |
| - | 1.5mm2 | 19/0.32 | 2.25 | 2.75 | 12.7 | 18.2 | 25.9 |
| 14awg | 2mm2 | 19/0.36 | 2.36 | 2.86 | 10 | 22.2 | 30.3 |
| - | 2.5mm2 | 37/0.37 | 2.78 | 3.31 | 7.43 | 30.4 | 39.9 |
| 12awg | 3mm2 | 37/0.32 | 2.9 | 3.43 | 6.63 | 33.6 | 43.4 |
| - | 4mm2 | 37/0.37 | 3.38 | 3.91 | 4.88 | 45.4 | 56.7 |
| 10awg | 5mm2 | 37/0.4 | 3.53 | 4.06 | 4.13 | 52.2 | 64 |
In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen in India...
Shenzhou Special cable have more than 80 skilled technicians and employees with professional experience
We mainly engaged in production of high temperature wire(PTFE wire,PFA wire,FEP wire,ETFE tefzel wire),Robot cable, Crane cable, Drag chain cable(TPU cable,TPE cable) etc.

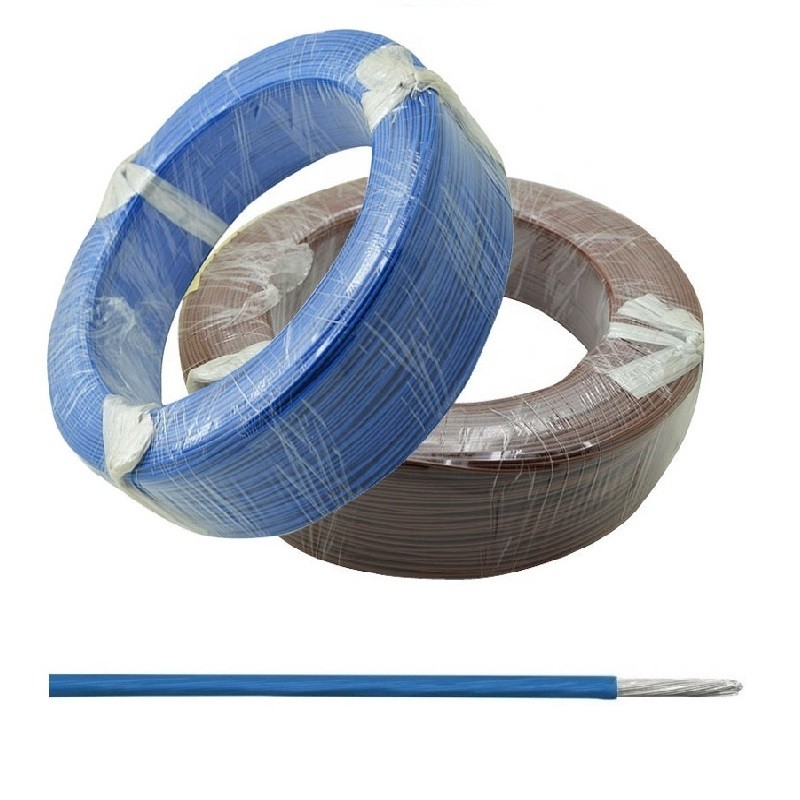

Packaging and Shipping for FEP Insulated Wire:
FEP Insulated Wire will be packaged in boxes or rolls and shipped by air, sea or ground transportation.
