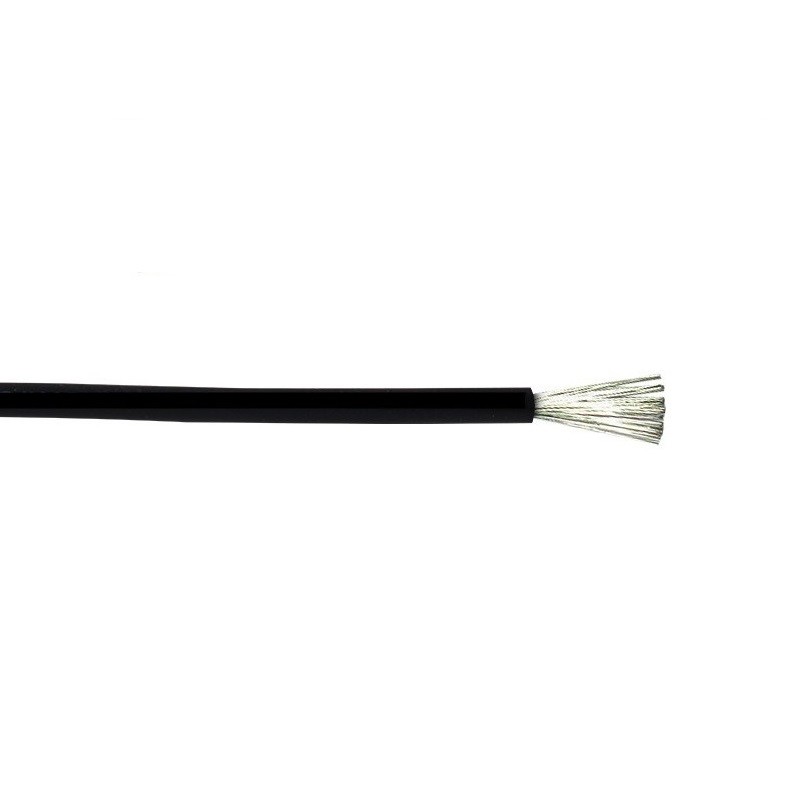

150C High Temp Tin Plated Tefzel Insulated Wire
What is ETFE insulated wire?
Tefzel insulated wire, also known as Tefzel wire, is a type of electrical wire that is insulated with a material called Tefzel. which is a high-performance fluoropolymer.
Tefzel insulation offers excellent resistance to chemicals, high temperatures, and abrasion. It is also known for its low coefficient of friction, high dielectric strength, and good electrical properties.
Tefzel insulated wire is commonly used in applications where there is a need for high chemical resistance and temperature tolerance. It is often found in industries such as aerospace, automotive, telecommunications, and industrial manufacturing.The insulation material provides protection and electrical insulation for the wire conductors, allowing safe and reliable electrical connections.
Tefzel insulated wire is available in various gauges and configurations to meet different application needs.When working with Tefzel insulated wire, it is important to follow electrical safety guidelines and ensure proper installation and handling to maintain its electrical performance and overall integrity.
ETFE insulation wire finds applications in various industries, including aerospace, automotive, renewable energy, electronics, and more. It is commonly used for high-temperature wiring, motor windings, lighting systems, electrical panels, and other electrical applications.
Properties
1. Insulation: ETFE insulated

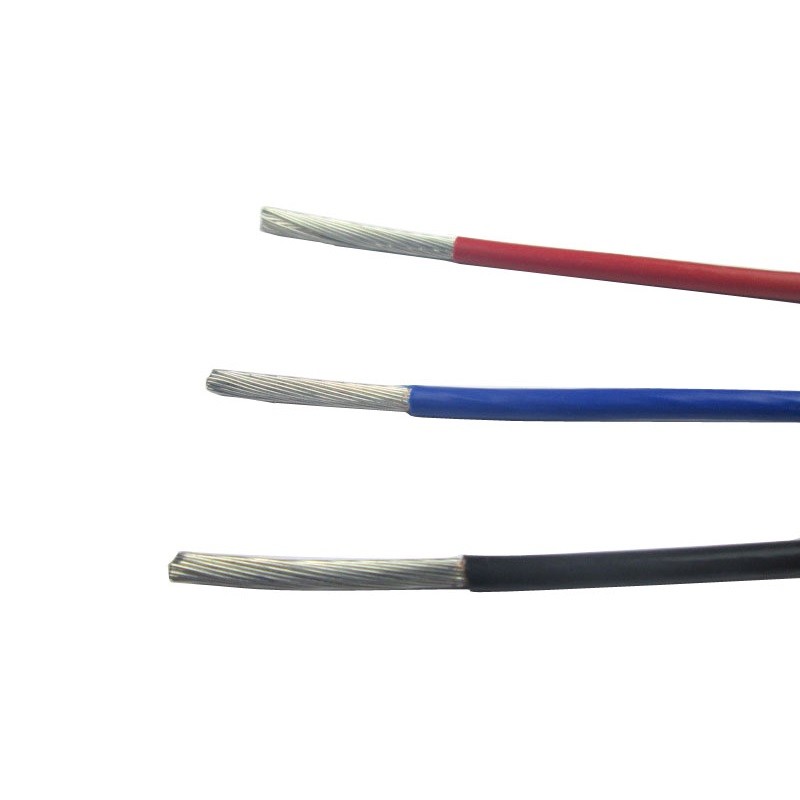

2. Conductor: Tinned copper wire(Solid or Stranded)
3. Operating temperature :-65℃~+150℃
4. Rated voltage :AC600V or below
5. Insulation resistance(20 ℃) : not less than 100 m Ω. Km
6. Voltage test (AC) : insulation wire 2200V/1min, shielding wire 1500V/30s no breakdown

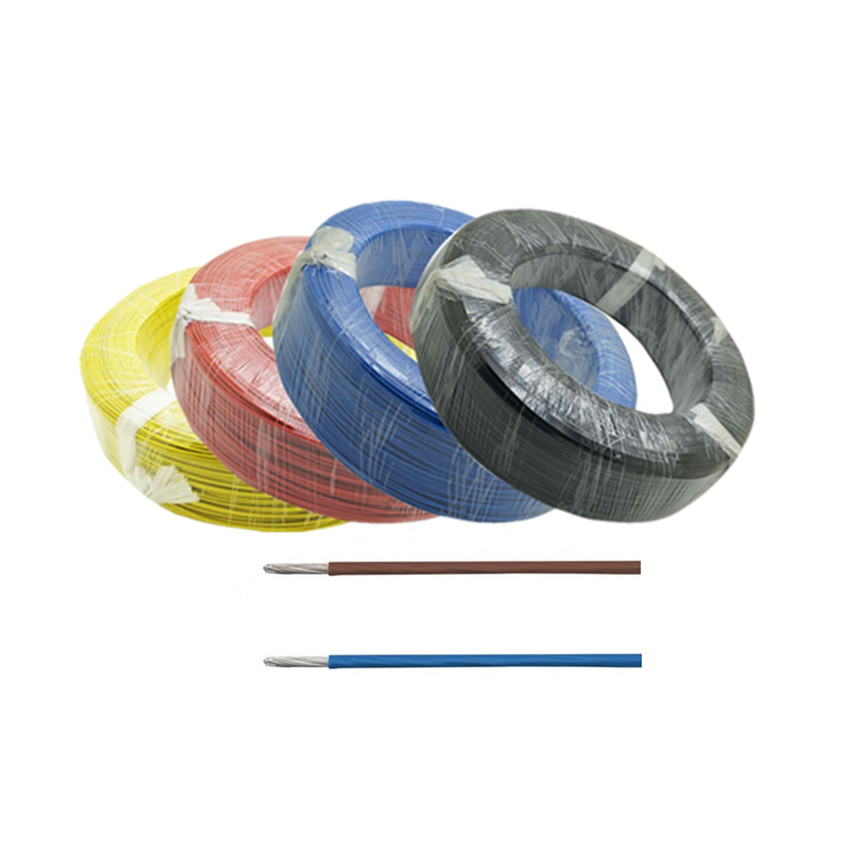

7. Color: red, yellow, blue, white, black, transparent, brown, green, yellow and green
| Wire gauge | Section area (mm2) |
Conductor construction piece/diameter (mm) |
Reference OD (mm) |
Max. Conductor resistance at 20℃ |
Reference weight kg/km |
||
| FF40-1 | FF40P11-1 | FF40-1 | FF40P11-1 | ||||
| 26awg | 0.14mm2 | 19/0.1 | 1.02 | 1.52 | 136 | 2.66 | 6.64 |
| 24awg | 0.2mm2 | 19/0.12 | 1.14 | 1.64 | 90.4 | 3.82 | 8.17 |
| 22awg | 0.4/0.3mm2 | 19/0.16 | 1.32 | 1.85 | 53.1 | 5.48 | 10.4 |
| 20awg | 0.6/0.5mm2 | 19/0.2 | 1.52 | 2.02 | 32.4 | 7.98 | 13.5 |
| - | 0.75mm2 | 19/0.23 | 1.7 | 2.2 | 24.6 | 9.99 | 16.1 |
| 18awg | 1mm2 | 19/0.26 | 1.8 | 2.3 | 20.4 | 11.7 | 18.1 |
| 16awg | 1.2mm2 | 19/0.28 | 2.01 | 2.51 | 16.6 | 14.8 | 21.8 |
| - | 1.5mm2 | 19/0.32 | 2.25 | 2.75 | 12.7 | 18.2 | 25.9 |
| 14awg | 2mm2 | 19/0.36 | 2.36 | 2.86 | 10 | 22.2 | 30.3 |
| - | 2.5mm2 | 37/0.37 | 2.78 | 3.31 | 7.43 | 30.4 | 39.9 |
| 12awg | 3mm2 | 37/0.32 | 2.9 | 3.43 | 6.63 | 33.6 | 43.4 |
| - | 4mm2 | 37/0.37 | 3.38 | 3.91 | 4.88 | 45.4 | 56.7 |
| 10awg | 5mm2 | 37/0.4 | 3.53 | 4.06 | 4.13 | 52.2 | 64 |
In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen in India...
Shenzhou Special cable have more than 80 skilled technicians and employees with professional experience
We mainly engaged in production of high temperature wire(PTFE wire,PFA wire,FEP wire,ETFE tefzel wire),Robot cable, Crane cable, Drag chain cable(TPU cable,TPE cable) etc.
Packaging and Shipping for FEP Insulated Wire:
FEP Insulated Wire will be packaged in boxes or rolls and shipped by air, sea or ground transportation.
