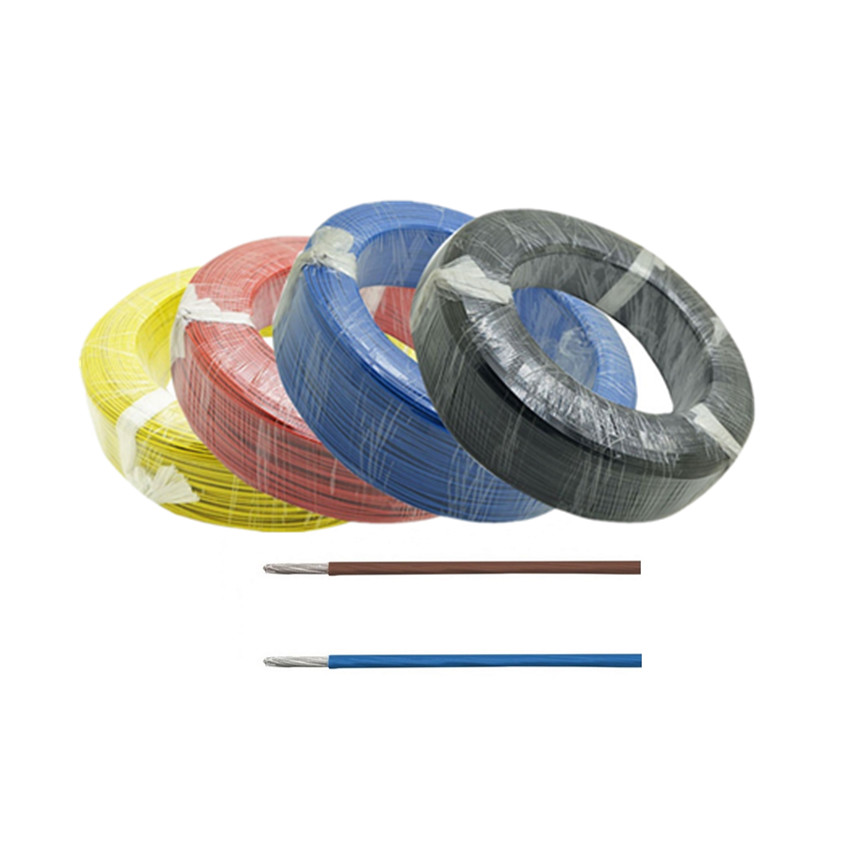

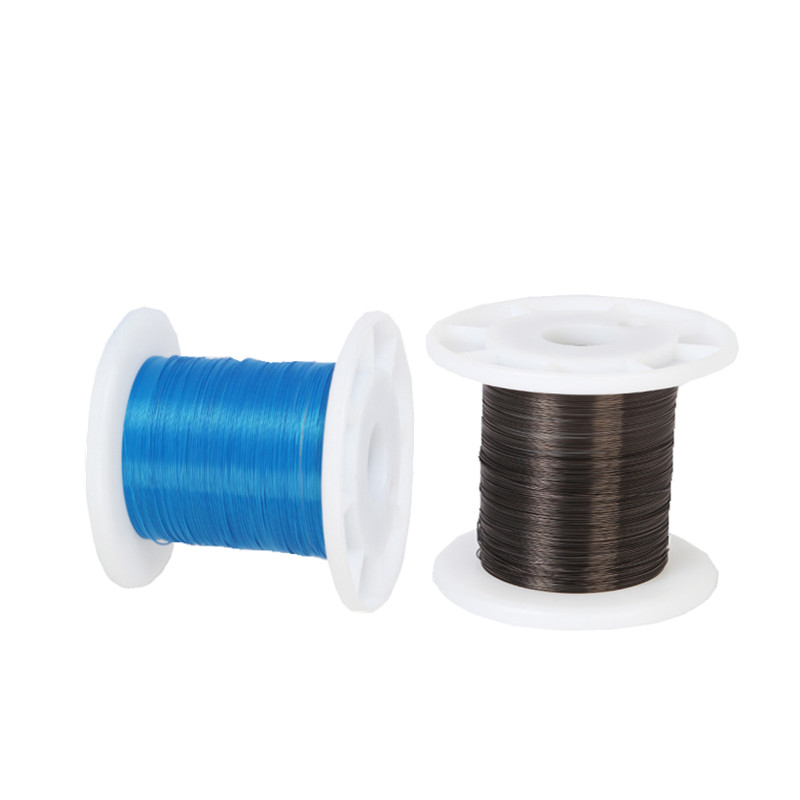

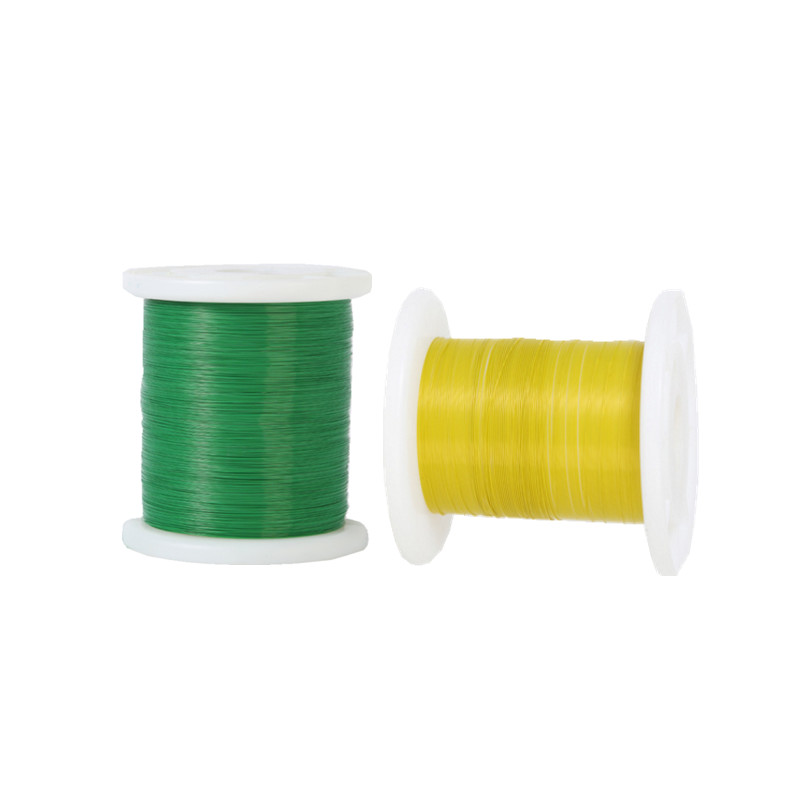

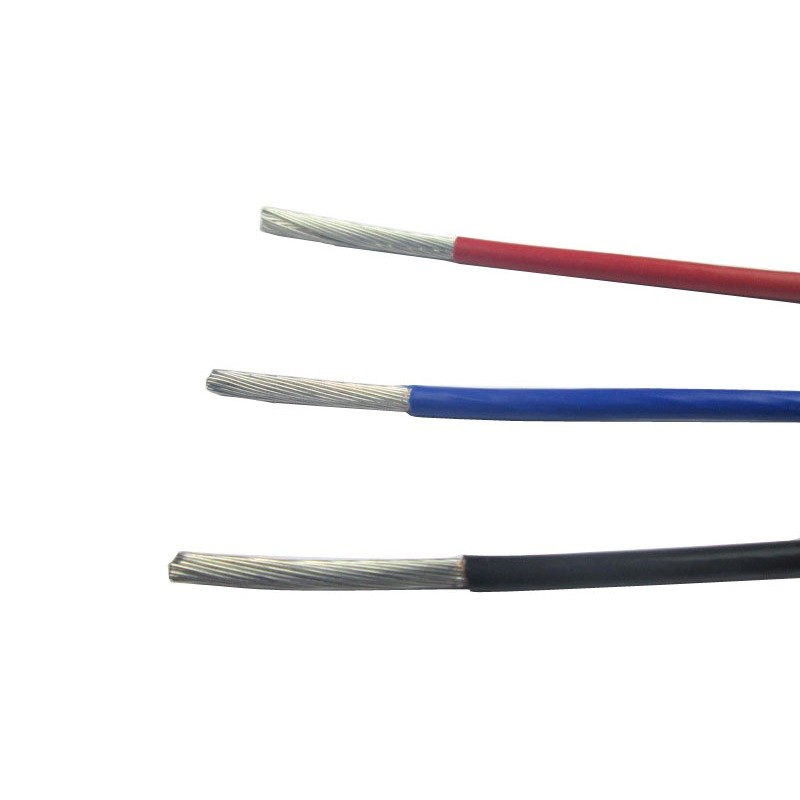

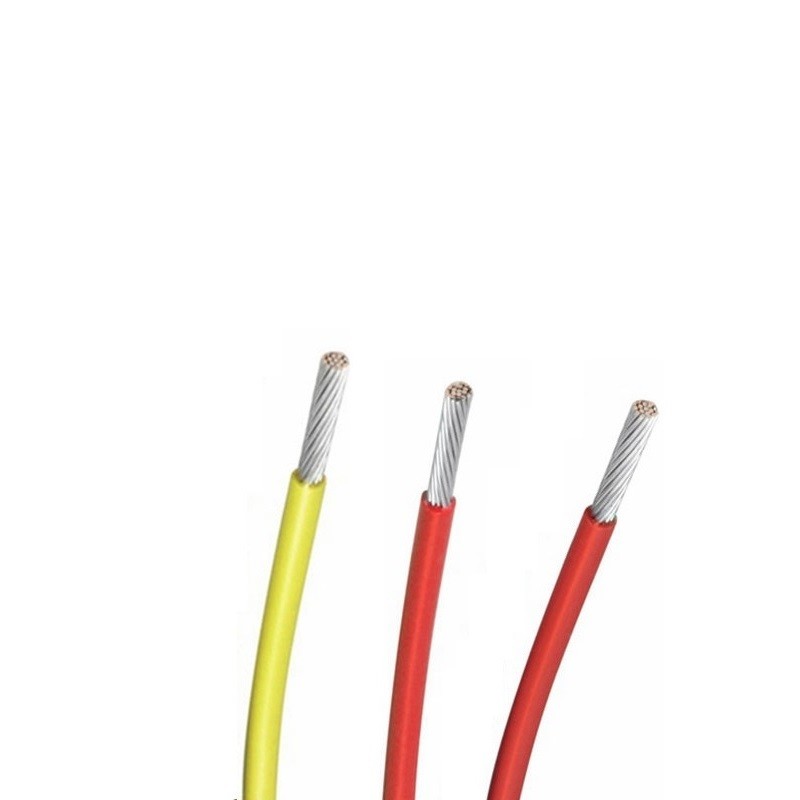

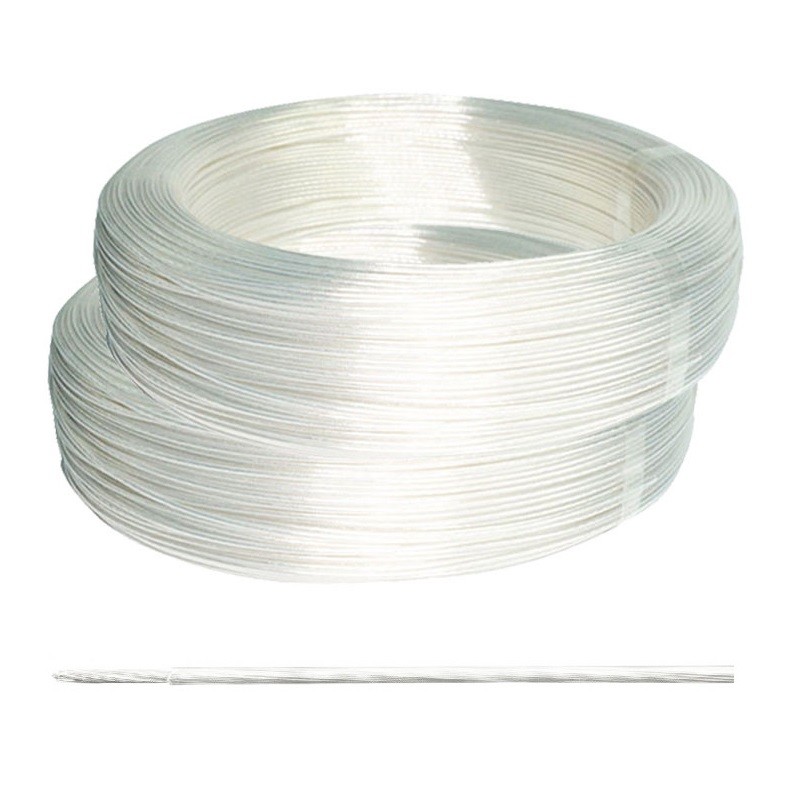

Tinned Copper Electrical Wire 20 22 Gauge Tefzel Wire
About Tefzel Wire:
It's refers to electrical wire that is insulated with Tefzel, a type of fluoropolymer known scientifically as ethylene tetrafluoroethylene (ETFE)
Tefzel wire offers excellent resistance to chemicals, high temperatures, and abrasion. It is also known for its low coefficient of friction, high dielectric strength, and good electrical properties.
Application: Tefzel copper wire is commonly used in aerospace, automotive, and industrial applications where performance and reliability are essential.
Properties
| Insulation |
ETFE insulated |
| Conductor |
Tinned copper wire |
| Operating temperature |
-65℃~+150℃ |
| Rated voltage |
AC600V or below |
| Insulation resistance(20 ℃) |
not less than 100 m Ω. Km |
| Voltage test (AC) |
insulation wire 2200V/1min, shielding wire 1500V/30s no breakdown |
| Color |
Red, yellow, blue, white, black, transparent, brown, green, yellow, green |
| Wire gauge |
Section area
(mm2) |
Conductor construction
piece/diameter
(mm) |
Reference OD
(mm) |
Max. Conductor
resistance at 20℃
(Ω/Km)
|
Reference weight
kg/km |
| FF40-1 |
FF40P11-1 |
FF40-1 |
FF40P11-1 |
| 26awg |
0.14mm2 |
19/0.1 |
1.02 |
1.52 |
136 |
2.66 |
6.64 |
| 24awg |
0.2mm2 |
19/0.12 |
1.14 |
1.64 |
90.4 |
3.82 |
8.17 |
| 22awg |
0.4/0.3mm2 |
19/0.16 |
1.32 |
1.85 |
53.1 |
5.48 |
10.4 |
| 20awg |
0.6/0.5mm2 |
19/0.2 |
1.52 |
2.02 |
32.4 |
7.98 |
13.5 |
| - |
0.75mm2 |
19/0.23 |
1.7 |
2.2 |
24.6 |
9.99 |
16.1 |
| 18awg |
1mm2 |
19/0.26 |
1.8 |
2.3 |
20.4 |
11.7 |
18.1 |
| 16awg |
1.2mm2 |
19/0.28 |
2.01 |
2.51 |
16.6 |
14.8 |
21.8 |
| - |
1.5mm2 |
19/0.32 |
2.25 |
2.75 |
12.7 |
18.2 |
25.9 |
| 14awg |
2mm2 |
19/0.36 |
2.36 |
2.86 |
10 |
22.2 |
30.3 |
| - |
2.5mm2 |
37/0.37 |
2.78 |
3.31 |
7.43 |
30.4 |
39.9 |
| 12awg |
3mm2 |
37/0.32 |
2.9 |
3.43 |
6.63 |
33.6 |
43.4 |
| - |
4mm2 |
37/0.37 |
3.38 |
3.91 |
4.88 |
45.4 |
56.7 |
| 10awg |
5mm2 |
37/0.4 |
3.53 |
4.06 |
4.13 |
52.2 |
64 |
| |
|
|
|
|
|
|
|
