Conductor Material:
Tinned Copper, Tinned Plated Copper
Diameter:
22 AWG, 20 AWG, 24 AWG, 18 AWG, 16 AWG
Insulation Material:
ETFE
Rated Voltage:
600V Or Below
Conductor Type:
Stranded, Stranded Or Solid
Shape:
Round
Single Wire Size:
1.2 Mm, 1.0 Mm, 0.5 Mm, 0.3 Mm
Temperature Range:
-65℃~+150℃
Insulation Thickness:
0.15 Mm, 0.2 Mm, 0.33 Mm
Max Conductor Resistance:
239 Ω/Km, 150 Ω/Km, 94.2 Ω/Km, 32.4 Ω/Km, 20.4 Ω/Km, 16.6 Ω/Km, 10 Ω/Km, 6.63 Ω/Km, 4.13 Ω/Km
Number Of Cores:
Single Core Or Multiple Cores
Section Area:
0.08 Mm2, 0.14 Mm2, 0.2 Mm2, 0.4 Mm2, 0.6 Mm2, 1 Mm2, 1.2 Mm2, 2 Mm2, 3 Mm2, 5 Mm2
Conductor Construction:
7/0.12, 7/0.16, 7/0.2, 19/0.16, 19/0.2, 19/0.26, 19/0.28, 19/0.36, 37/0.32, 37/0.4
Reference OD:
0.66 Mm, 0.78 Mm, 0.9 Mm, 1.1 Mm, 1.3 Mm, 1.7 Mm, 1.8 Mm, 2.46 Mm, 2.9 Mm, 3.46 Mm

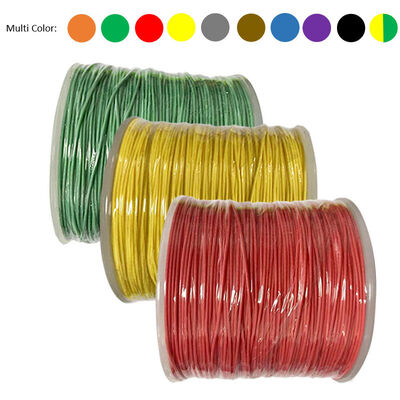

Color Options:
Yellow, Red, Orange, Black, Green, Purple, Blue
Highlight:
High Temperature Resistance ETFE Wire
, Tinned Copper Conductor Tefzel Cable
, 7 Strands ETFE Insulated Wire
