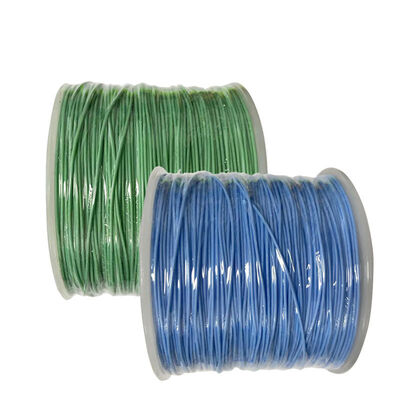

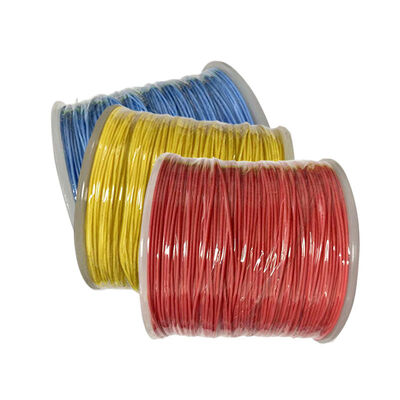

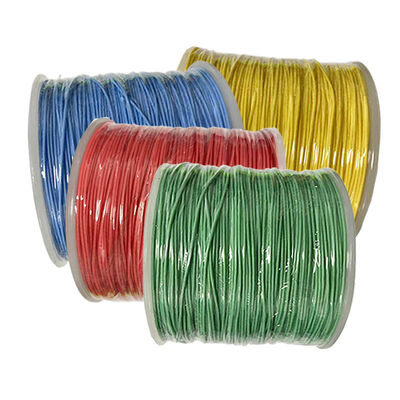

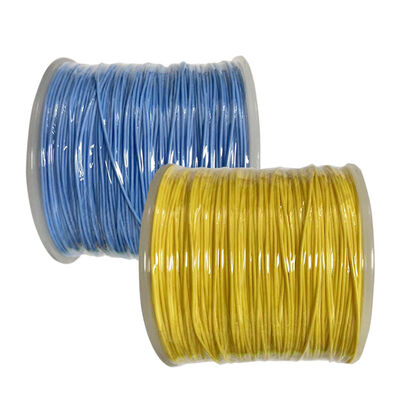

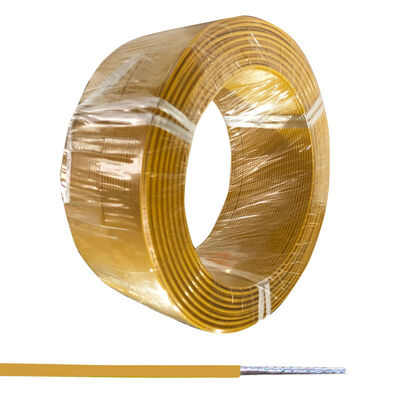

600V Tinned Plated Copper ETFE Extruded Wire
ETFE (ethylene tetrafluoroethylene) is a high-performance fluoropolymer used as insulation for electrical wires. ETFE insulated wires offer exceptional electrical properties including high temperature resistance, excellent dielectric strength, low friction, and superior chemical resistance.
These wires are ideal for demanding applications across aerospace, automotive, electronics, and telecommunications industries, particularly in environments with high temperatures, corrosive chemicals, and mechanical stress.
Key Advantages
- High Temperature Resistance: Withstands temperatures up to 150°C (302°F) without degradation
- Chemical Resistance: Highly resistant to fuels, acids, and solvents in harsh environments
- Excellent Electrical Properties: Superior dielectric strength and low dielectric constant for efficient insulation and signal transmission
- Mechanical Strength: Durable construction resistant to abrasion, impact, and mechanical stress
- Lightweight & Flexible: Easy installation and routing capabilities
Cable Construction & Specifications
Conductor Materials: Tinned Plated Copper or Silver Plated Copper
Conductor Type: Stranded
Number Core: Single Core or Multiple Cores
Insulation: ETFE, FEP, PTFE, PFA Insulated
Rated Voltage: AC 600V and Below
Rated Temperature: -65°C to +150°C

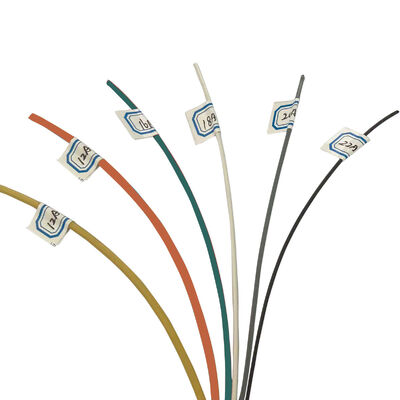

Color Options: Red, White, Black, Blue, Green, Yellow, Brown, Yellow/Green
| Wire Gauge |
Section Area (mm²) |
Conductor Construction Piece/Diameter (mm) |
Insulation Thickness (mm) |
Reference OD (mm) |
Max. Conductor Resistance at 20℃ (Ω/Km) |
| 28 AWG |
0.08 |
7/0.12 |
0.15 |
0.66 |
239 |
| 26 AWG |
0.14 |
7/0.16 |
0.15 |
0.78 |
239 |
| 24 AWG |
0.2 |
7/0.2 |
0.15 |
0.9 |
150 |
| 22 AWG |
0.4/0.3 |
19/0.16 |
0.15 |
1.1 |
94.2 |
| 20 AWG |
0.6/0.5 |
19/0.2 |
0.15 |
1.3 |
32.4 |
| 18 AWG |
1 |
19/0.26 |
0.2 |
1.7 |
20.4 |
| 16 AWG |
1.2 |
19/0.28 |
0.2 |
1.8 |
16.6 |
| 14 AWG |
2 |
19/0.36 |
0.33 |
2.46 |
10 |
| 12 AWG |
3 |
37/0.32 |
0.33 |
2.9 |
6.63 |
| 10 AWG |
5 |
37/0.4 |
0.33 |
3.46 |
4.13 |
Company Information
Xiangtan Shenzhou Special Cable Co., LTD is a trusted wire and cable supplier for China's aerospace and military sectors with 21 years of experience. We produce our own cable compounds, enabling superior quality control and competitive pricing for global customers.
Our product range includes: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and more. We maintain advanced production facilities, integrated management systems, and collaborate with universities and research institutes to provide customized cable solutions.
Exhibition & Customer Visits
We have participated in international exhibitions including Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, and Power-Gen India.
Customer Visits: As a professional wire and cable manufacturer, we have exported products to the US, Venezuela, India, Vietnam, Bangladesh, Africa and other countries. We welcomed the delegation from Ezeagu Government of Nigeria to our factory in 2017, establishing long-term partnerships.
Certifications & Honors
- Selected for China's manned space flight project development, construction, and related cooperation for Shenzhou 7 mission success
- Participated in China's manned space project development, construction, and testing for first manned flight mission
- Recognized by China Academy of Launch Vehicle Technology for contributions to the "Arrow of God" project supporting China's astronaut space exploration
Why Choose Us
As a stable supplier to China's aerospace and military sectors, customer satisfaction is our primary objective.
Our Services
- Free technical consultation before, during, and after sales
- Free samples and design services
- Monitoring and detection services during manufacturing
- 100% free insurance for internal transportation
- OEM & ODM services available
- Small order quantities accepted
Packing & Shipping
We utilize fast international express delivery services including DHL, UPS, FEDEX, TNT, and EMS. We also provide air, sea, and land transportation options according to your requirements.
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer engaged in research, development, and sales of military and consumer cable wire and cable compounds. Our company is located in Hunan Province, China.
What are your company's strengths?
As a trusted supplier to China's aerospace and military with 21 years of experience, we produce our own cable compounds, ensuring superior quality and competitive pricing for global customers.
How do you guarantee your product quality?
Quality is our top priority. We implement strict quality control throughout the entire process from design and materials procurement to manufacturing, semi-finished product testing, and finished product inspection.
What's the warranty for your products?
We provide a 1-year comprehensive warranty service. If products have quality issues, we offer unconditional replacement or return.
How can I get samples?
We can produce sample orders for you. For small quantities available in stock, samples are provided free of charge with freight costs covered by the customer.
