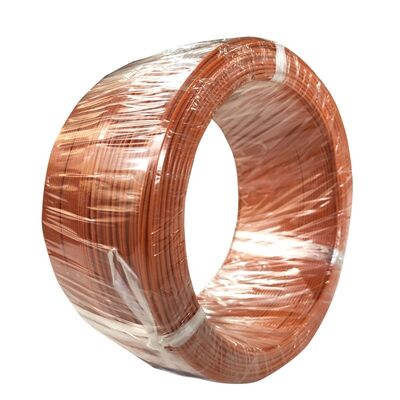

Tinned Copper Heat Resistant ETFE Tefzel Wire
ETFE Insulated Wire is engineered using advanced ETFE (Ethylene Tetrafluoroethylene) material, which provides exceptional thermal and electrical insulation properties. This makes it an ideal choice for use in high-temperature environments where traditional wire insulation materials may fail to deliver the required level of protection.
Our ETFE Insulated Wire withstands extreme temperatures ranging from -200°C to 150°C without compromising structural integrity or electrical performance. This thermal resilience makes it suitable for aerospace, automotive, and industrial manufacturing applications where exposure to harsh operating conditions is common.
In addition to thermal performance, ETFE Insulated Wire offers excellent resistance to chemicals, oils, and solvents, ensuring long-term durability and reliability in challenging environments. It is engineered to meet stringent safety standards and delivers consistent electrical performance with low dielectric constant and high dielectric strength.
Key Features
- Small diameter saves space in compact applications
- Excellent electrical characteristics, mechanical strength, heat resistance, chemical resistance, and flame resistance
- Superior low temperature performance characteristics
- Higher tensile and impact strength than PTFE with greater dielectric strength and radiation resistance
Cable Construction and Specifications
| Conductor Materials |
Tinned Plated Copper |
| Conductor Type |
Stranded |
| Number Core |
Single Core or Multiple Cores |
| Insulation |
ETFE, FEP, PTFE, PFA Insulated |
| Rated Voltage |
300V AC |
| Rated Temperature |
-65°C to +150/200°C |
| Color |
Red, White, Black, Blue, Green, Yellow, Brown, Yellow/Green |
AWG Specifications
| AWG |
No. of Conductor |
Diameter (mm) |
Thickness of Insulator (mm) |
Over Diameter (mm) |
| 32 awg |
7/0.08 |
0.24 |
0.2 |
0.4 |
| 30 awg |
1/0.254 |
0.254 |
0.15 |
0.55 |
| 28 awg |
1/0.32 |
0.32 |
0.18 |
0.67 |
| 26 awg |
7/0.16 |
0.48 |
0.23 |
0.92 |
| 26 awg |
19/0.1 |
0.5 |
0.23 |
0.96 |
| 24 awg |
7/0.203 |
0.61 |
0.23 |
1.07 |
| 24 awg |
19/0.12 |
0.6 |
0.23 |
1.06 |
| 22 awg |
7/0.254 |
0.76 |
0.23 |
1.22 |
| 22 awg |
19/0.16 |
0.8 |
0.23 |
1.26 |
Company Information
Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military with 21 years of experience. We produce our own cable compounds, enabling us to maintain superior quality and competitive pricing for global customers.
Our main products include: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, and Power cable. We operate advanced production facilities with integrated management systems and collaborate with universities and research institutes to provide customized cable solutions.
Exhibition & Customer Visits
We regularly participate in international exhibitions including the Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, and Power-Gen India.
As a professional wire and cable manufacturer, we have exported products to the US, Venezuela, India, Vietnam, Bengal, Africa, and other countries. We welcomed the delegation from Ezeagu Government of Nigeria to our factory in 2017, establishing long-term partnerships.
Certifications & Honors
- Participated in China manned space flight project development and construction for Shenzhou 7
- Carried out development, construction and testing for China's first manned space flight
- Collaborated with China Academy of Launch Vehicle Technology on the "Arrow of God" project for astronaut space exploration
Why Choose Us
As a stable supplier to China's aerospace and military sectors, customer satisfaction is our primary objective.
Our Services
- Free technical consultation before, during, and after sales
- Free samples and design services
- Monitoring and detection services during manufacturing
- 100% free insurance for internal transportation
- OEM & ODM services available
- Small order quantities accepted
Packing & Shipping
We use fast international express delivery including DHL, UPS, FEDEX, TNT, and EMS. We can also arrange air, sea, or land transportation according to your requirements.
Frequently Asked Questions
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer engaged in research, development and sales of military and consumer cable wire and cable compounds. The company is located in Hunan Province, China.
Q: What is your company's strengths?
A: We are a stable wire and cable supplier of China's aerospace and military with 21 years of experience. We produce our own cable compounds, enabling us to maintain superior quality and competitive pricing.
Q: How do you guarantee your product quality?
A: Quality is our priority. We implement strict quality control from design and materials procurement through manufacturing, semi-finished product testing, and finished product inspection.
Q: What's the warranty of your products?
A: We provide a 1-year complete warranty service. If products have quality problems, we will replace or return them unconditionally.
Q: How can I get samples?
A: We can prepare sample orders. For small quantities available in stock, samples are free with freight costs covered by the customer.
